EPS Foam Fabric Leather CNC Oscillating Cutting Machine

Ask Lasest Price
Brand Name :	DWIN
Model Number :	DW1625
Certification :	CE FDA SGS
Price :	9000usd-12000usd
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	200 sets / month
Delivery Time :	8-10 working days

Add to Cart

Product Details
Company Profile

EPS Foam Fabric Leather CNC Oscillating Cutting Machine

EPS Foam Fabric Leather CNC Oscillating Knife Cutting Machine

Oscillating knife cutting Machine Features:1.Fast
Maximum cutting speed: 1200mm / s
MVIP CNC knife cutting machine is 3-5 times faster than traditional
manual cutting.
2. Material savings
The machines are computerized, precise and save material.
3. Compatible
The fabric knife cutting machines support any design software that
can generate files in DXF or PLT format. For example: AutoCad,
Coreldraw, AI, etc.
4. User friendly
All sharp turns can be controlled on the machine.
Free training is provided in our company or on your site. We assure
you that you can operate the machine.
5. Environment-friendly
The knife cutting machine is no smell pollution, no smoke
pollution.
The knife blades can be re-used for lower cost , and Energy saving.
6. Functional
Oscillating knife foe leather cutting, Round knife for fabric
cutting and Pneumatic knife for thick materials cutting

Technical parameter:

Item	Specification
X axis working	1600mm/1800mm/2100mm
Y axis	2500 mm/3000 mm/3500mm
Z axis	50 mm/60 mm

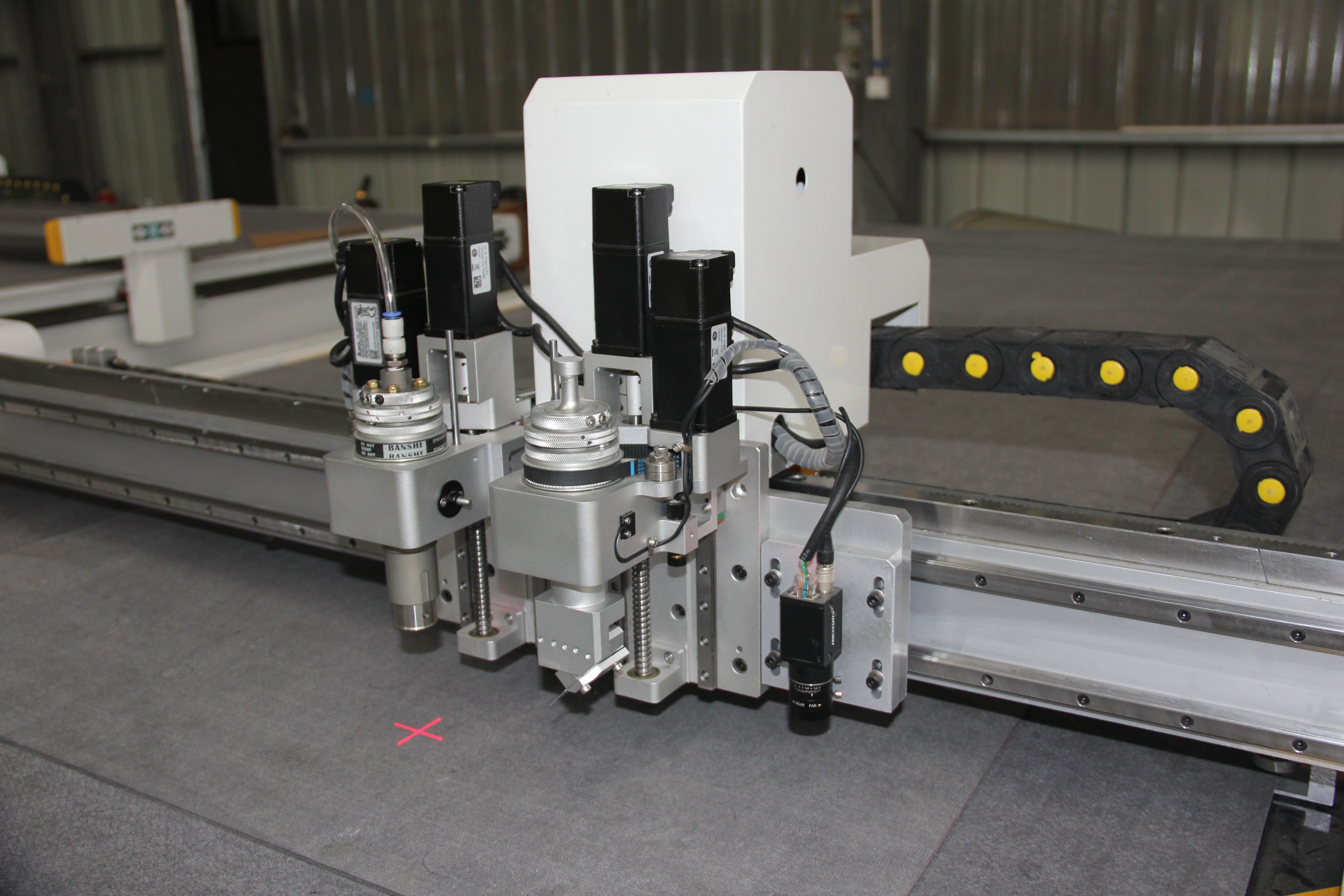

Cutting head holder	Two sets , these two head holders can change automatically
Machine table	Flat adsorption Table of 4mm thickness cloth
Automatic feeding table	Yes but no automatic correction function
Driving system	Taiwan Delta servo driver and motor
Control system	Zhongrui control system
Instruction system	HP-GL /GP-GL compatible format
Transmission system	Taiwan PMI square rail and Taiwan SKS rack
Safety device	Using infrared sensors, responsive, safe and reliable
Travel speed	800-1200mm/s
Cutting speed	200-800mm/s(according to different cutting materials)
Cutting thickness	≤55mm(according to different cutting materials)
Repeated accuracy	≤0.1mm
Weight	1000kgs
Machine size	2800/3200/37001900/20001500mm
Power	220v/380v
Warranty	2 years

Oscillating knife cutting Machine Advantages:

1. Stable structure: thick wall square tube welding, side plate tempering treatment, the lathe bed is processed by five side milling processing center, aging treatment, solid without deformation.

2. Zhongrui control system, high precision, high efficiency, high reliability, green and environmental protection automatic processing

3. Modular structure design, simple and safe operation mode, to ensure the speed and accuracy of operation.

4. Vacuum adsorption table, high-power vacuum pump, air volume up to 300m3 / h.

5. Perfect lubrication system to extend the service life of the machine.

6. The gantry type movement is adopted, and the materials on the working table can be processed at will, so the operation is convenient.

7. X / Y axis is driven by high-precision rack, with high speed and precision.

8. The z-axis is driven by high-precision double nut automatic clearance ball screw with high precision.

9. The cutting machine adopts square linear guide rail to ensure the high precision of the machine and bear large load

10. The wire adopts imported high flexible shielded cable

Samples

DWIN knife cutting machine suit for leather, fabric, textile, cardboard, plastic box, fiber glass,corrugated cardboard,
sticker, film, foam boardrubber, cloth,
gasket material, garment cloth, footwear material, bags materials, non-woven fabrics,seat cover, carpets/rugs, sponge, PU, EVA,
XPE, PVC, PP, PE, PTFE, ETFE and composites
