    CNC Oscillating Knife Cutting Machine 1600x2500mm , Vibrating Knife Cutting Machine

    Ask Lasest Price
    Brand Name : DWIN
    Model Number : DW1625
    Certification : CE FDA SGS
    Price : 9000usd-12000usd
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 200 sets / month
    Delivery Time : 8-10 working days
    • Product Details
    • Company Profile

    CNC Oscillating Knife Cutting Machine 1600x2500mm , Vibrating Knife Cutting Machine

    CNC Oscillating blade leather Cutter Vibrating Knife Cutting Machine

    Oscillating knife cutting Machine Features:

    1. Electric shock and head are strong, and vibration frequency is high which can up to 25000 times per minute.

    2. The whole machine adopts the high precision module; the response is faster; the positioning accuracy is higher; the overall
    performance is more stable.
    3. Using Servo-motor from Mitsubishi; With computer controlling, the depth of cutting and creasing can be adjusted precisely
    according to the need of box designer and makers.

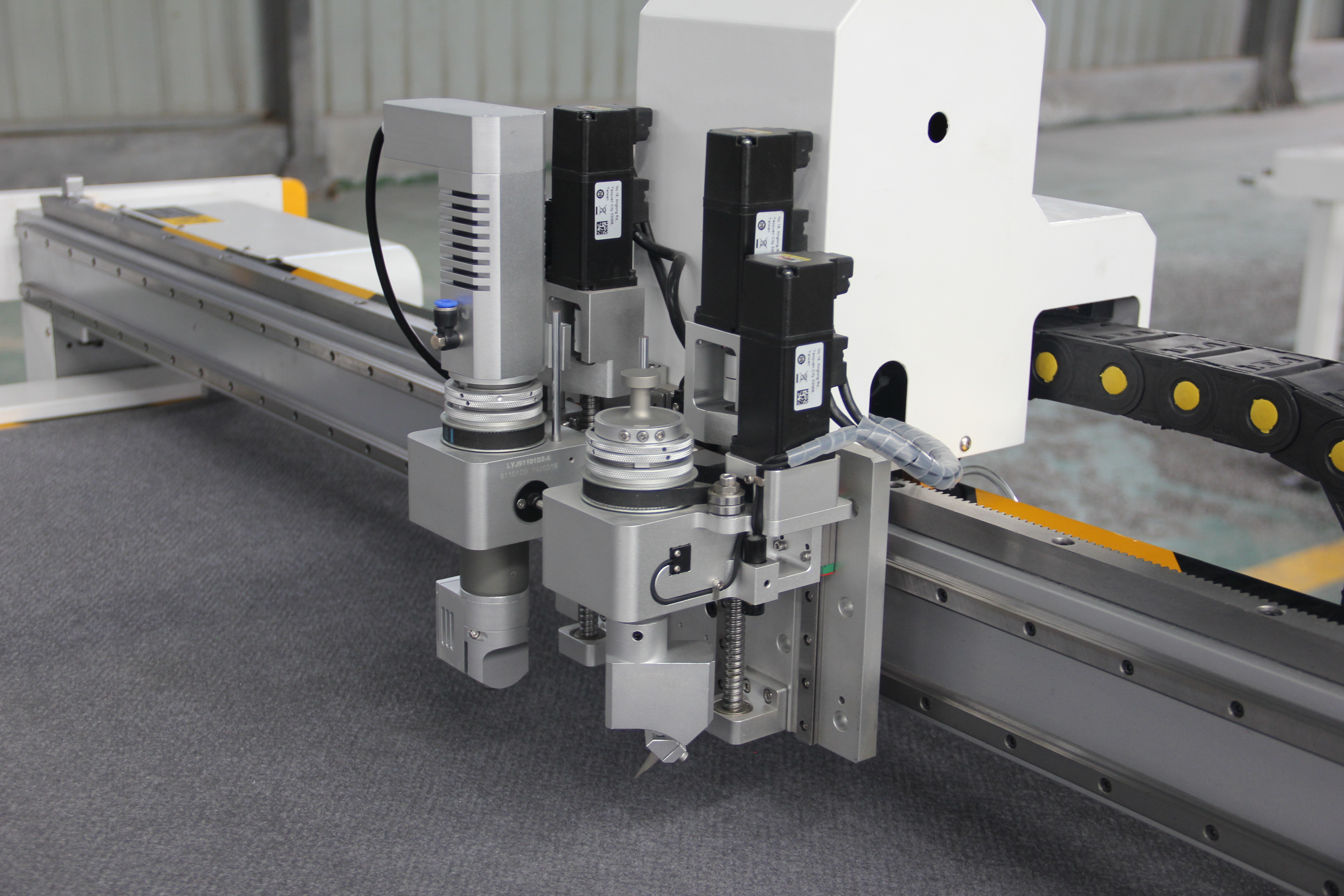

    4. The machines have three types of functional heads: vibration cutting head, creasing wheels, drawing pen. It enable the machine
    can cut different materials; corrugated paper, gray board, white cardboard, plastic sheets, composite materials, textiles,
    leathers, foam board, sponge etc .
    5. Drawing lines, drawing, text annotation, half cutting, full knife cutting,can be completed at the same time, which meets the
    low volume, multi order, multi style production target.
    6. Programmable multi axis motion controller; stability and operation achieve the leading technical level at home and abroad

    Technical parameter:

    Max. Cutting size
    2500*1600mm
    Power
    9KW
    Motor
    servo motor
    Multi-functional Tool Head
    Thorough cutting/Kiss cutting/Creasing/Plotting/Lasor Locating/Automatic Table-level measuring
    Security configuration
    High sensitive infrared induction (optional)
    Travelling speed
    Max. 1200mm/s
    Cutting speed
    Max. 800mm/s (Depending on different material type)
    Cutting material

    Corrugated paper, PVC expansion sheet, kt sheet, thick foam, carton board, paperboard, car sticker, adhesive Sticker, etc.
    Material fixing method
    High power vacuum absorption and intellectual partition
    Repeated positioning accuracy
    Maximum 0.01mm
    Display mode
    Chinese and English liquid crystal touch screen

    Oscillating knife cutting Machine Advantages:

    1. Stable structure: thick wall square tube welding, side plate tempering treatment, the lathe bed is processed by five side milling processing center, aging treatment, solid without deformation.
    2. Zhongrui control system, high precision, high efficiency, high reliability, green and environmental protection automatic processing
    3. Modular structure design, simple and safe operation mode, to ensure the speed and accuracy of operation.
    4. Vacuum adsorption table, high-power vacuum pump, air volume up to 300m3 / h.
    5. Perfect lubrication system to extend the service life of the machine.
    6. The gantry type movement is adopted, and the materials on the working table can be processed at will, so the operation is convenient.
    7. X / Y axis is driven by high-precision rack, with high speed and precision.
    8. The z-axis is driven by high-precision double nut automatic clearance ball screw with high precision.
    9. The cutting machine adopts square linear guide rail to ensure the high precision of the machine and bear large load
    10. The wire adopts imported high flexible shielded cable


    Samples

    DWIN knife cutting machine suit for leather, fabric, textile, cardboard, plastic box, fiber glass,corrugated cardboard,
    sticker, film, foam boardrubber, cloth,
    gasket material, garment cloth, footwear material, bags materials, non-woven fabrics,seat cover, carpets/rugs, sponge, PU, EVA,
    XPE, PVC, PP, PE, PTFE, ETFE and composites
