1530 600W CO2 laser cutting machine for wood MDF acrylic steel
materials
Main Features of 1530 600W CO2 laser cutting machine:
- Adopt Advanced Germany Mix Cutting Technology
- It supports both Metal and Non-Metal Cutting, can cut stainless
steel, carbon steel, mild steel, also can cut acrylic, wood, MDF
engraving and cutting.
- Advanced Laser Optical System
- Ensure Excellent Laser Beam Quality,can strongly improve the laser
power and laser beam quality.
- Laser Path Pre-view & Pre-position Function
- Laser beam is in-visible,by adopting “Red Light Pointer” ,Realize
the laser path pre-view and Pre-position function.
- Unique Mirrors and Lens Cooling Technology
- All mirrors and lens is cooled by water ,Takes the mirror heat
during working,Prolong its’ lifetime ,Save future operation cost
- Dynamic Auto-focus Metal Sheet Laser Cutting Head:
- When the metal sheet is not plain, the dynamic focus laser cutting
head can adjust the focusing distance automatically.
- Realize the accuracy of cutting effect.
- Advanced Colorful LCD Screen+ USB Port+ DSP Offline Control
- Support Both Metal and Non-Metal,Cutting Parameters,Support U disk,
USB communication.
- Thicken Strip Working Table Specially Used for Cutting
- Meets the need of diversified laser procession,Heavy
Loading,Suitable for cutting heavy and hard products
- Adopt Belt Transmission+Chinese Top Brand “Leadshine” Step Motor
and Driving System configuration which has high cost performance
The 1530 600W CO2 laser cutting machine application:
1) Metal Materail:
This Machine Can Cut Carbon Steel, Stainless Steel, According To
Different Metal
Materials And Thickness, We Will Adjust The Pluse Width, Current,
Frequency, Cutting Speed.
2) Non-Metal Materails:
Wood, Bamboo, Jade Articale, Stone(Only Can Engraving), Organic
Glass, Crystal(Only Can Engraving),
Rubber,Plastic, Cloth, Leather, Etc.
| Model | DW1530M 600W CO2 laser cutting machine |
| Working area | 1500*3000mm |
| Laser power | 150W/180W/280W/300W /500W/600W |
| Laser type | CO2 Glass laser tube |
| Engraving speed | 0-50000mm/min |
| Cutting speed | 0-20000mm/min |
| Power supply | AC380/220V/50/60HZ |
| Position accuracy | 0.01mm |
| Repetition accuracy | 0.02mm |
| Graphic format supported | BMP, PLT, DST, DXF, AI |
| Guide rail | Taiwan high accuracy linear guider rails from Taiwan |
| Transmission method | Belt transmission(Ball screw transmission is optional) |
| Software supported | CorelDraw,PhotoShop,AutoCAD |
| Driving system | Stepper motor and Leadshine driver |
| Controlling software | RUIDA 6332M system |
| Mirrors and lens | Singapore mirrors and lens |
| Belt | SHANGHAI FULONG belt |
| Net Weight | 1200kg |
| Optional part | Red light pointer,up and down table , Rotary with chuck, |
| Packing | Plywood box |
Auto-focus Metal Sheet Laser Cutting Head
When the metal sheet is not plain, the dynamic focus laser cutting
head can adjust the focusing distance automatically.Realize the
accuracy of cutting effect.
CW-5200/ CW-6000/CW-6300 High Power Water Cooling System
With alarm protection & temperature display Avoid over burning, to
protect the water circulation from electricity-off.

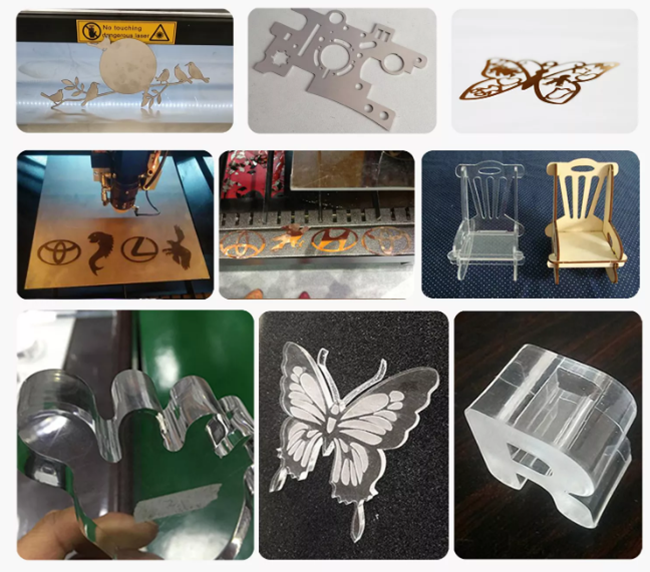

Samples:
FAQ:
Q: Can I get a machine according to my own requirements?
A: Sure.We accept OEM and ODM
Q: This is the first time I use this kind of machine, is it easy
operate?
A: There are guide video that show how to use machine and english
instruction book send to you with machine. If there is still have
any question, we will provide free professinal guide for you until
you could use machine well.
Q:What’s your MOQ and delivery?
A:Our MOQ is 1 set machine. We could send machine to your country
port directly, please tell us your port name. There will be best
shipping freight and machine price send to you.
Q: How about your service after sales?
A: We offer the service from you got the machine,including how to
install the machine, how to use machine. how to let machine work.
and so on. usually we will teach you how to do by email or by
skype, whatsapp...etc
Q: How should I pay for my order?What is the procession of this
purchase?
A: We accept T/T, Alibaba Trade Assurance,Western union, Paypal or
L/C,you can do 30% prepayment at first, then we will start to make
production. when the machine is ready , we will take pictures and
working video to you.After you confirm everthing,you can do the
ballance and after we got your payment.I will send the machine to
you.
