Carpet Automatic 1625 Fabric Cutting Machine 1600xc

Ask Lasest Price
Brand Name :	DWIN
Model Number :	DW1625
Certification :	CE FDA SGS
Price :	9000usd-12000usd
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	200 sets / month
Delivery Time :	8-10 working days

Add to Cart

Product Details
Company Profile

Carpet Automatic 1625 Fabric Cutting Machine 1600xc

fabric carpet automatic 1625 cutting machine

Oscillating knife cutting Machine Features:High speed: Only need 80 seconds to finish one set of car foot
mat., only need 6 minutes to finish one set of car cushion mattress
High efficiency: don't need any die mold, or die mold cutting
machine, this machine can press mark, cutting and molding on soft
material such as leather, carton etc. Save much labor and cost.
Low cost: one machine can do design, cutting instead of manual
design and cutting, save labor, and material wastage cost. Wide
application: This machine can cut leather, PU, fiber, EVA, XPE,
sponge cladding, composite cladding, Sponge+drape+composite
leather, PVC foot mat, paper, carton, plastic board etc. Soft
material.
Good performance: adopt Taiwan TBI ball screw or Wuxi High
precision rack pinion, low noise, accurate transmission. Long
lifespan and high precision.

Technical parameter:

Technical parameters / model	DWIN-1625
Effective working area	1600x2500mm
Multi-function tool	Vibrating knife full cut, semi-cutting cut, indentation, drawing mark, cursor positioning, camera positioning edge cutting, high power active round knife
safety devices	Safety devices use infrared sensing, safe and reliable
Cutting speed	200-2000mm/s
Cutting thickness	≤50mm Other thicknesses can be customized according to the material
Applicable materials	Glass fiber, glass fiber cotton, prepreg, carbon fiber, carbon fiber felt, boron fiber, aramid fiber, ceramic fiber, soft glass, PVC, leather leather, sponge composite skin, XPE material, wire ring, leather, soft glass , silicone, rubber material etc composite soft material
Material fixing method	Vacuum partition adsorption
Transmission port	Network port
Transmission system	Yaskawa servo motor, linear linear guide, timing belt, lead screw
rated power	11kw
Rated voltage	380V±10%/220V±10% Optional
Control System	Chinese and English LCD touch screen
Operating environment	Operating environment Temperature 0-40°C Humidity 20%-80%RH
Support file format	AI,PLT,DXF,CDRetc
Overall size	230035601221mm

Oscillating knife cutting Machine Advantages:

1. Stable structure: thick wall square tube welding, side plate
tempering treatment, the lathe bed is processed by five side
milling processing center, aging treatment, solid without
deformation.

2. Ruida control system, high precision, high efficiency, high
reliability, green and environmental protection automatic
processing

3. Modular structure design, simple and safe operation mode, to
ensure the speed and accuracy of operation.

4. Vacuum adsorption table, high-power vacuum pump, air volume up
to 300m3 / h.

5. Perfect lubrication system to extend the service life of the
machine.

6. The gantry type movement is adopted, and the materials on the
working table can be processed at will, so the operation is
convenient.

7. X / Y axis is driven by high-precision rack, with high speed and
precision.

8. The z-axis is driven by high-precision double nut automatic
clearance ball screw with high precision.

9. The cutting machine adopts square linear guide rail to ensure
the high precision of the machine and bear large load

10. The wire adopts imported high flexible shielded cable

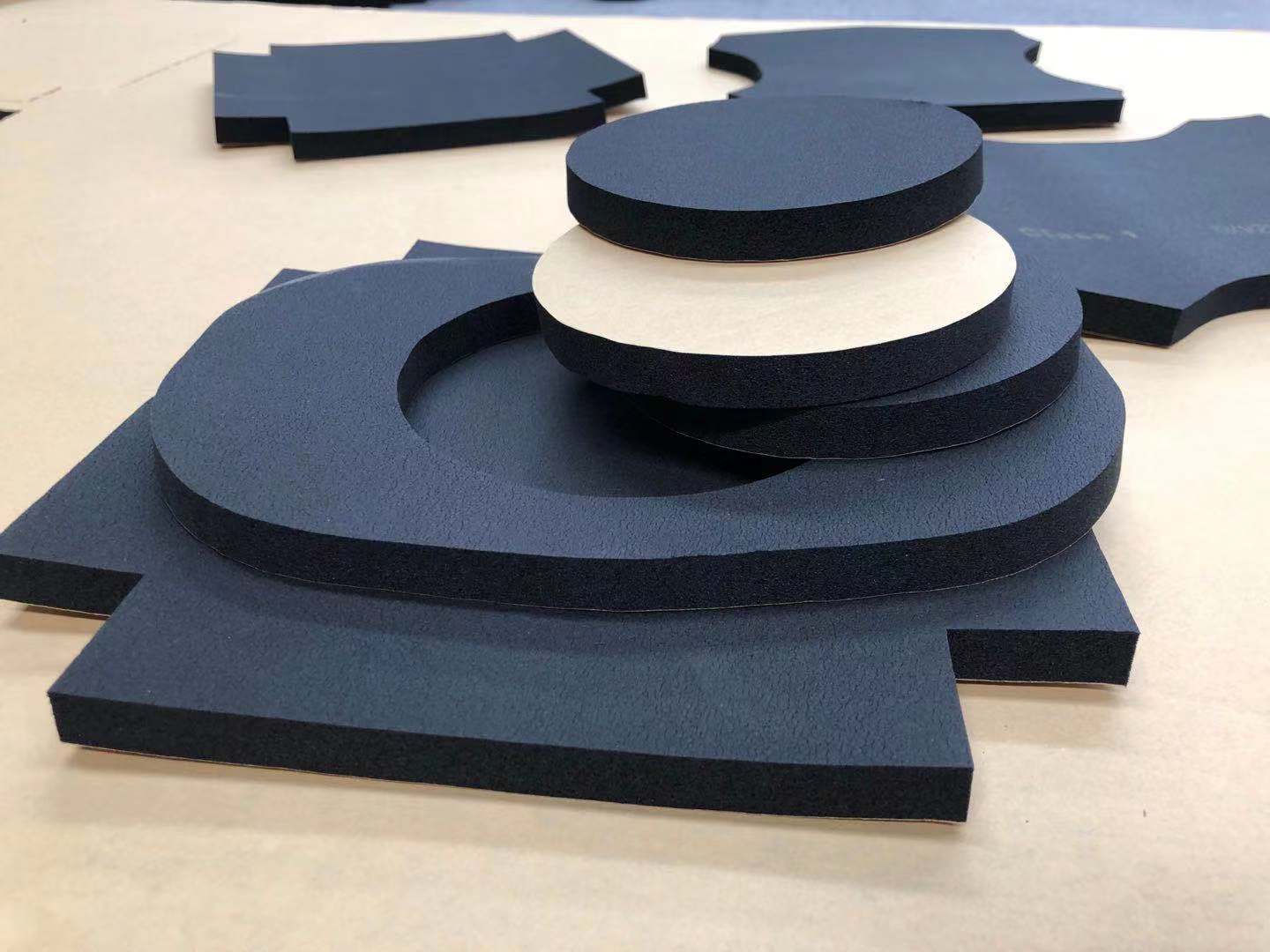

Samples

DWIN knife cutting machine suit for leather, fabric, textile, cardboard, plastic box, fiber glass,corrugated cardboard,
sticker, film, foam boardrubber, cloth,
gasket material, garment cloth, footwear material, bags materials, non-woven fabrics,seat cover, carpets/rugs, sponge, PU, EVA,
XPE, PVC, PP, PE, PTFE, ETFE and composites
