5.5KW water cooling head with CCD oscillating knife cutter
Technical parameter:
Technical Paramaters: |
X working size | 1600mm |
Y working size | 2500mm |
Z working size | 50mm, max cutting thickness of material is 50mm |
Cutting head | cnc oscillating knife cutting head with ccd |
| engraving head | 5.5KW water cooling spindle |
Display way | English LED touch screen |
Machine table | Suction Table, suitable for textile, sponge, foam, corrugated
board, paper, plastic film and other soft material |
Data transfer way | Intel |
Vacuum pump | 9KW air type vacuum pump |
Driving system | Taiwan delta servo driver and motor |
Control system | Xingduowei control system |
Guiding system | Taiwan TBI square rail |
Weight | About 1200kgs |
Size | 2250*3300*1650mm |
Power | 380V 50HZ |
Oscillating knife cutting Machine Advantages:
1. Stable structure: thick wall square tube welding, side plate
tempering treatment, the lathe bed is processed by five side
milling processing center, aging treatment, solid without
deformation.
2.Xingduowei control system, high precision, high efficiency, high
reliability, green and environmental protection automatic
processing
3. Modular structure design, simple and safe operation mode, to
ensure the speed and accuracy of operation.
4. Vacuum adsorption table, high-power vacuum pump, air volume up
to 300m3 / h.
5. Perfect lubrication system to extend the service life of the
machine.
6. The gantry type movement is adopted, and the materials on the
working table can be processed at will, so the operation is
convenient.
7. X / Y axis is driven by high-precision rack, with high speed and
precision.
8. The z-axis is driven by high-precision double nut automatic
clearance ball screw with high precision.
9. The cutting machine adopts square linear guide rail to ensure
the high precision of the machine and bear large load
10. The wire adopts imported high flexible shielded cable
Samples
DWIN knife cutting machine suit for leather, fabric, textile,
cardboard, plastic box, fiber glass,corrugated cardboard,
sticker, film, foam boardrubber, cloth.

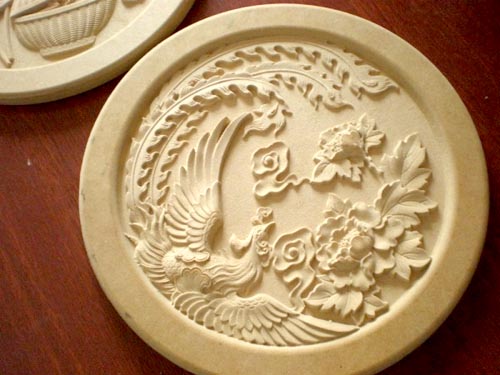

CNC router with 5.5KW water cooling spindle head :
1.Wood: Plywood, Soft Wood, Hard Wood, MDF, Chipboard, etc.
2.Plastic: Acrylic, ABS, HDPE, PVC, UHMW, HDPE, etc.
3.Metal: Aluminium, Brass, Copper, etc,it needs extra cooling system .
4.Soft material: Leather, Gasket, PP, PE, EVA, PTFE, ETFE, Carpet, Carton, Wood,
MDF, PVC, Acrylic,Carboard, Rubber, Corrugated box, Foam, Leather
strip, Composites, Cardboard, Corrugated board, Honeycomb paper,
Plastic film,Fiber paper, Plastic box, Rebound rubber, Rubber
cloth, etc.
