Features of Laser cutting and engraving machines
1. Adopting seamless welding and body bending technology, can make
sure the machines’ stable and reliable working performance.
2. X,Y axis adopted high precision and high speed Shanghai Fulong
belt transmission.
3.Red light positioning system realizes the exact position without
laser.
4.Taiwan Hiwin square guide rail, high accuracy and long life time.
Applicable materials:
Laser cutting and engraving machines applicable with
wood,bamboo,jade,marble,organic
glass,ceystal,plastic,garments,paper,leather,rubber,cermic,glass
and other nonmetal materials.
Applicable industries:
Laser cutting and engraving machines applicable with
advertisement,arts and crafts,leather,toys,garments,model,building
upholster,computerized embrroidery and clipping,packing and paper
industry.
Technical parameters:
Model | Laser cutting and engraving machines |
Working size | 1500*3000mm |
Laser power | 100W,130W , 150W ,200W ,300W |
Laser type | CO2 sealed laser tube,water-cooled |
controller | Ruida controller |
Engraving speed | 0-60000mm/min |
Cutting speed | 0-10000mm/min |
Power supply | 220V±10% /50HZ , 110V±10%//60HZ |
Min. shaping character | Letter 1.0 x 1.0mm |
Graphic format supported | BMP, PLT, DST, DXF, AI,CDR |
Software supported | CorelDraw, PhotoShop, AutoCAD |
Laser Output Control | 1-100% software setting |
Highest Scanning Precision | 2500DPI |
Resolution ratio | <0.01mm |
Location precision | <0.01mm |
Operating humidity | 5%-95%(without condensed water) |
Net Weight | 900KG |
Optional parts | Rotary device , Automatic up down table, auto focus, double head |

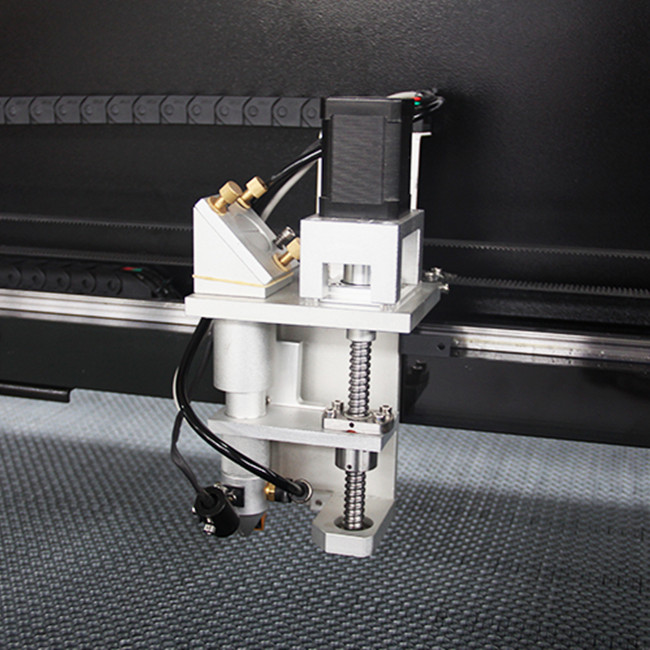

Laser cutting and engraving machines parts:
Laser cutting and engraving machines Samples:
FAQ:
Q1: This is the first time I buy this machine, what type of the
machine should I choose?
Please tell us what material will be marked/engraved and the depth
of marking/engraving, our professional sales will advise you the
suitable model machines.
Q2: How do you ensure that it's the right machine I need? Or How
can I check the quality?
You can ship us your sample material and marking content for
testing, samples will be done within 1-2 days after get your sample
material, then we take pictures and video for you or can ship it
back to you for quality checking.
Q3: I don't have experience to operate this machine, what should I
do?
We will send operation video and manual for the machine. Our
engineer will do training online. If needed, we can send our
engineer to your site for training or you can send the operator to
our factory for training.
Q4: What payment terms can you accept?
Any payment is possible for us, like TT, Western Union,
Paypal,LC,Cash etc.
Q5: How do you ship the machine to me?
Generally, it was shipped by sea or by Air.
Q6: What’s the package? Is it safe enough to protect the products?
We have 3 layers package. For the outside, we use wooden cases free
of fumigation. In the middle, the machine is covered by foam, to
protect the machine from shaking. For the inside layer, the machine
is covered by waterproof plastic film.
