1400x1000mm 100W CO2 Laser Engraving Cutting Machine

Ask Lasest Price
Brand Name :	DWIN
Model Number :	DW1410
Certification :	CE FDA SGS
Price :	2850 usd-4300
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	300 sets / month
Delivery Time :	10 working days

Add to Cart

Product Details
Company Profile

1400x1000mm 100W CO2 Laser Engraving Cutting Machine

laser cutting engraving machine 1400x1000 CO2 laser with up down platform

Laser cutting engraving machine Features :

1. Blade or honeycomb table.Two kinds of of tables are available for different material

2.CO2 Glass sealed laser tube China famous brand (EFR, Reci), good beam mode stability, long service time.

3. Imported lens and mirrors. High transmittance, good focusing, reflection effect.

4. Ruida Controller system, support online/offline working, English language system, adjustable cutting speed and power.

5 High accuracy stepper motors and drivers. Belt transmission.

6. Taiwan Hiwin/PMI Linear square guide rails, higher precision.

7. Open style, the front and back of the machine is open which is possible for longer material, breakthrough the limit of the workpiece length.

8. Rotate cutting available

Applicable Industries :

Laser cutting engraving machine applicable with nonmetal material such as acrylic ,leather ,rubber ,plastic ,granite ,cloth ,glass ,wood plank ,paper

Applicable Materials :

Laser cutting engraving machine applicable with bamboo, organic glass, wood, leather, cloth, plastic, printing rubber sheet, double color board, glass,
Synthetic crystal, ox horn, cardboard, density board, marble and other common non-metallic materials

PRODUCT SPECIFICATIONS

Model	Item	Laser cutting engraving machine
1	Application:	Laser cutting engraving
2	Power	80W100W/130W/150W
3	Working area	1400*1000
4	Tube Brand	RECI/EFR/YONGLI/SPT
5	Power Supply	110V/220V 50HZ/60HZ
6	Min line width	≤0.15mm
7	Positon accuracy	0.01mm
8	Repetition accuracy	0.02mm
9	DPI	2500 DPI
10	Smallest Character Engraving	Character2.0mm×2.0mm, English 1.0mm×1.0mm
11	Guide rail	PMI/Shac from 15mm Taiwan (X-axis, Y-axis)
12	Transmission method	Belt Transmission
13	Drive system	Leadshine driving system
14	Mainboard	RUIDA 6445/6442
15	Control software	RUIDA-V8,Coreldraw, Photoshop, AutoCAD, etc
16	Cooling method	Water cooling
17	Working environment	0-45℃
18	Net weight	420KG
19	Working table	Honey comb/ Knief/up and down/Electric lifting

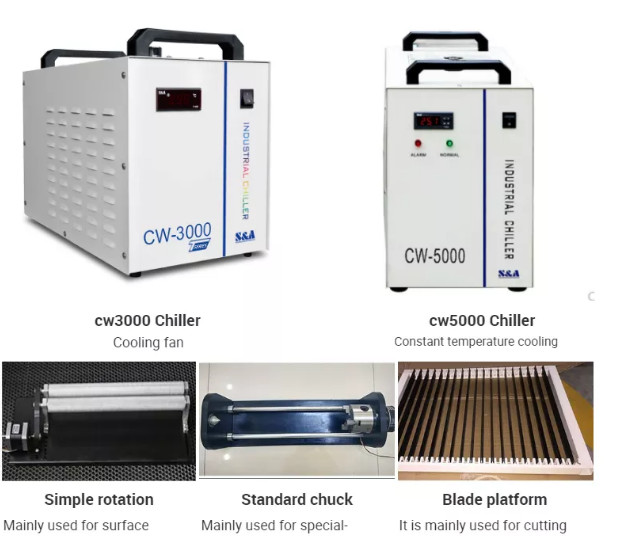

Optional parts:

1400x1000mm 100W CO2 Laser Engraving Cutting Machine

Wood engraving and cutting Samples:

FAQ:

Q1.Do you have MOQ?

Depends on different ideas, Can be negotiated.The larger the quantity is, the competitive the unit price will be.

Q2.How do you ship the machine to me?
Generally, it was shipped by air, by sea or by air.

Q3.How about the after sale service?

We will always keep the quality the same as the buyer's samples and if there is something with the quality,we will make compensation for our customers. We will suggest our packing and take charge in our packing,we will keep the goods safe in the delivery. We will trace the goods from the production to selling,we will solve the problems in the selling for our customers.

Q4.When can I get a price?

We usually quote within 24 hours after we get your inquiry.

Q5: Are you a trade company or manufacturer?

We are a professional manufacturer with our own factory.
