500W metal CNC laser cutting machine with rotary device 4ft x 8ft
metal nonmetal
Main Features of 500W metal cnc laser cutting machine with rotary
device:
1). Mixed-cut: metal steel such as stainless steel,carbon steel,and
nonmetal such as acrylic,wood,etc.
2). High precision: X/Y axis adopt Leadshine servo motor with high
precision belt transmission,improve the response speed and cutting
precision,extend service life.
3). Good stability: optimized the nc system control,it can meet the
precision parts processing,stable dynamic performance,also can work
for long hours.
4). The cutting section with good quality: mechanical follow-up
cutting head system,cutting head always follows the material to
keep the cutting point locaation unchanged,which insures smooth
cutting section without processing again.It can adopt to flat or
curved surface sheet cutting.
5). Adopt sealed co2 laser tube,main consumable items are electric
energy,water cooling,auxiliary gas and laser light.
6). Simple structure,easy operation,stable laser device and low
maintenance cost.
Applicable Industries :
Mainly used in advertising ,decoration industry (stainless metal
and carbon steel related products),sheet metal industry (carbon
steel ) ,packing industry (die board )and other related industry.
Applicable Materials :
Nonmetal materials ,like acrylic ,wood ,MDF,die board ,and so on .
metal materials ,such as stainless steel , carbon steel ,etc.
| Model | DW1325 500W metal CNC laser cutting machine with rotary device |
| Working area | 1300*2500mm |
| Laser power | 150W/180W/280W/300W /500W/600W |
| Laser type | CO2 Glass laser tube |
| Engraving speed | 0-50000mm/min |
| Cutting speed | 0-20000mm/min |
| Power supply | AC380/220V/50/60HZ |
| Position accuracy | 0.01mm |
| Repetition accuracy | 0.02mm |
| Graphic format supported | BMP, PLT, DST, DXF, AI |
| Guide rail | Taiwan high accuracy linear guider rails from Taiwan |
| Transmission method | Belt transmission(Ball screw transmission is optional) |
| Software supported | CorelDraw,PhotoShop,AutoCAD |
| Driving system | Stepper motor and Leadshine driver |
| Controlling software | RUIDA 6332M system |
| Mirrors and lens | Singapore mirrors and lens |
| Belt | SHANGHAI FULONG belt |
| Net Weight | 1200kg |
| Optional part | Red light pointer,up and down table , Rotary with chuck, |
| Packing | Plywood box |

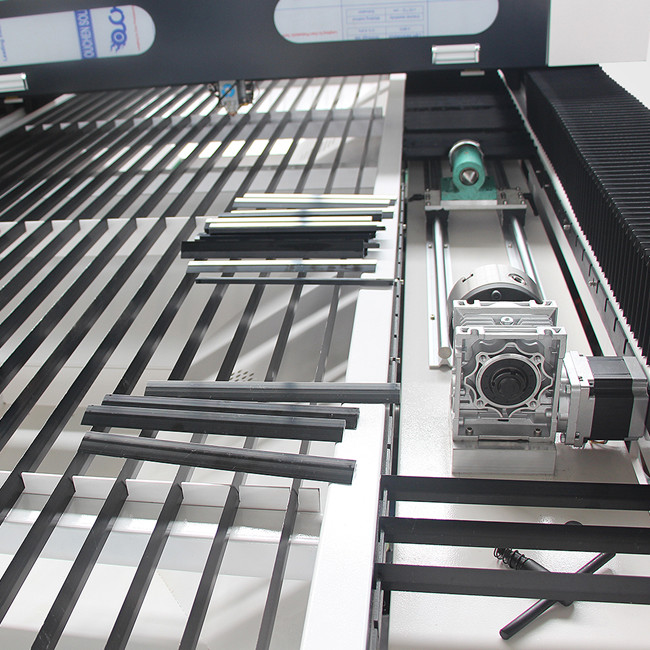

The 500W metal CNC laser cutting machine with rotary device beside
the machine can also cut the pipe materials:
500W SLW CO2 laser tube:

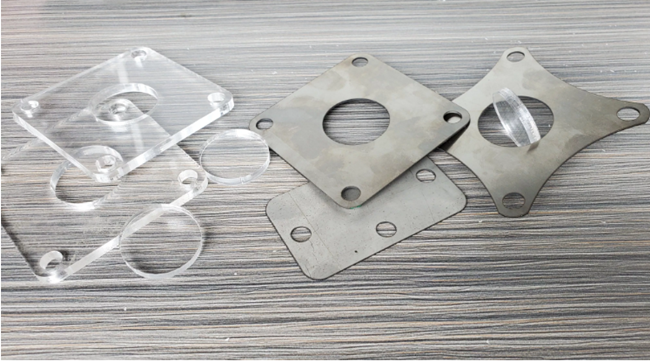

The big power laser cutting machine can keep the natural color on
cutting edge:
FAQ:
Q: Can I get a machine according to my own requirements?
A: Sure.We accept OEM and ODM
Q: This is the first time I use this kind of machine, is it easy
operate?
A: There are guide video that show how to use machine and english
instruction book send to you with machine. If there is still have
any question, we will provide free professinal guide for you until
you could use machine well.
Q:What’s your MOQ and delivery?
A:Our MOQ is 1 set machine. We could send machine to your country
port directly, please tell us your port name. There will be best
shipping freight and machine price send to you.
Q: How about your service after sales?
A: We offer the service from you got the machine,including how to
install the machine, how to use machine. how to let machine work.
and so on. usually we will teach you how to do by email or by
skype, whatsapp...etc
Q: How should I pay for my order?What is the procession of this
purchase?
A: We accept T/T, Alibaba Trade Assurance,Western union, Paypal or
L/C,you can do 30% prepayment at first, then we will start to make
production. when the machine is ready , we will take pictures and
working video to you.After you confirm everthing,you can do the
ballance and after we got your payment.I will send the machine to
you.
