multi function CO2 laser metal nonmetal cutting machine auto focus
laser head
Main features of multi function CO2 laser metal nonmetal cutting
machine :
1) Mix Cutting: multi function CO2 laser metal nonmetal cutting
machine with two tubes 280W and 60W supports both metal and
non-metal Cutting and engraving, which can cut stainless steel,
carbon steel, mild steel, also can cut engave acrylic, wood, MDF,
PVC board, paper, fabric, etc.This machine with the rotary device ,
also can used for cutting the round mateirals and pipes.
2) The multi function CO2 laser metal nonmetal cutting machine
adopts small power such as 60W & 80W for materials engraving and
also adopts higher power 150w / 180w / 260w / 300w Laser Tube, for
metal and nonmetal cutting.
3) This multi function CO2 laser metal nonmetal cutting machine
adopts dynamic auto-focusing metal sheet laser cutting head: When
the metal sheet is not plain, the dynamic focus laser cutting head
can adjust the focusing distance automatically.
4) Advanced LCD Touch Screen+ USB port+ DSP Offline Control, which
make the 1390 metal nonmetal laser cutting machine can not only
work without computer, but also connect to U disk, USB
communication.
5) LCD Control System own 128M Big Memory, which can store files in
the machine for engraving and cutting, compatible with AutoCAD,
CorelDraw, Photoshop and some other kinds of graph disposal
software.
6) Equipped with luxury Consumables,USA original Focus Lens and
reflect mirror, steel sheet cutter makes high efficiency and
steady.
7) Red Light Pointer realizes the exact position without laser.
multi function CO2 laser metal nonmetal cutting machine is a newly super technology, mainly used to cut both metal and
non-metal machine. The cutting thickness of this industrial laser
cutter can reach 1-2mm stainless steel, 1-3mm carbon steel, 20-30mm
acrylic, 10-20mm wood, 20-25mm MDF.
Laser Cutting is a non-contact subtractive manufacturing technology
that uses a laser to cut materials primarily used for industrial
manufacturing applications. Laser cutting works by directing the
output of a high-power focused laser beam melting the material
leaving an edge with a high-quality surface finish.
Metal Materials Cutting: Stainless Steel, Mild steel, Carbon Steel
Non-Metal Materials Cutting: Acrylic,MDF, Wood, Plywood, Plastic, PVC board, Double Color
Board, Rubber
Technicial parameters:
Model | DW-1390M CO2 laser metal nonmetal cutting machine |
Laser tube brand | RECI laser tube ,YONGLI laser tube |
Working area | 1300*900mm |
Working table | Blade table |
Laser power | 60W/80W+150w/180w/200w/300w |
Guide rail | Taiwan high accuracy 20mm guide rail |
Transmission method | Taiwan Belt |
Drive system | Leadshine driving system and stepper motor |
Cooling system | Water chiller 5200/6000/6200 |
Control system | Ruida colorful control system |
Graphic format support | PLT, DXF, BMP, DST ,AI |
Control software | RD touch screen controller |
System Environment | Windows 7/8/10 |
Working Precision: | ±0.01mm |
System Resolution: | ±0.001mm |
Working environment | 0-45°C |
Operating Humidity | 5-95% |
Power supply | 110V/220v±10%/ |
Packing | Plywood case (wood case for export) |
Net weight | 500KG |
Gross weight | 570KG |

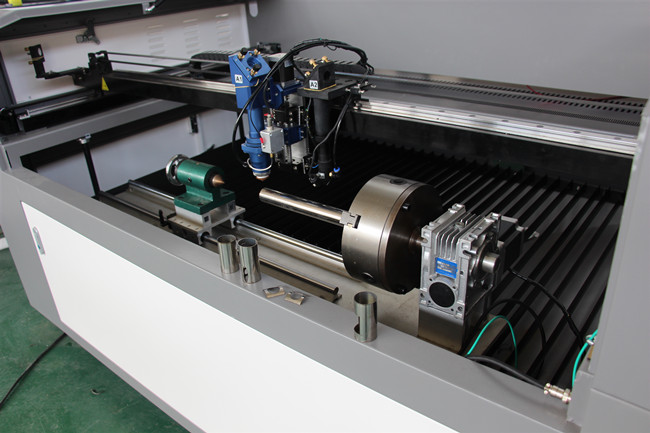

1390 metal nonmetal laser cutting machine with double laser heads
one is special for nonmetal materials engraving and cutting,another
is for metal and thcik nonmetal materials cutting, this machine
also with a rotary device, can use for cut pipes and round
materials:
Laser tubes:
Samples:
FAQ:
Q: What should I do if the machine fails?
A: If you encounter such problems, please contact us as soon as
possible, and do not try to repair the machine by yourself or
others. We will reply as soon as possible within 24 hours to solve
it for you.
Q: Are you a factory or a trading company?
A: We are a factory with rich experience. Or directly make an
appointment with the customer for a video factory inspection. Send
factory inspection video to customers to watch
Q: How should I do if the machine have some problem?
A: If your macine such problems, please contact us as soon as
possible, and do not try to repair the machine by yourself or
others. We will reply as soon as possible within 24 hours to solve
it for you.
