Atc Cnc Machine Cabinet Office Furniture ion Line Nesting Cnc
Router
1. Atc Cnc Machine Heavy-duty body welded by high-strength thick-walled steel pipes,
annealing aging and sandblasting treatment, stable structure and
guaranteed accuracy.
2.cnc router machine excellent accessories and sophisticated detection devices enable
the product to obtain perfect positioning and running accuracy.
Technical parameter:
| Model | DW1325 |
| Working area | 1300x2500mm |
| Machine color | As customer request |
| Spindle power | 2.2kw-9kw can option |
| Cooling mode | Water cooling or air cooling |
| control system | NC-studio/DSP/MACH3 option |
| spindle rptating speed | 0-24000rpm/min |
| Max travel speed | 8000mm/min |
| Power supply | 220V / 380V, Signal /three phase |
| Graphic format supported | BMP, PLT, DST, DXF, AI,CDR,GIF,DWG |
| Software supported | CorelDraw, Photo Shop, AutoCAD |
| command | G code*.u00*.mmg*.plt |
| Resolution ratio | <0.01mm |
| Location precision | <0.01mm |
| Working temperature/ Operating humidity | 5°C-40°C/ 5%-95%(without condensed water) |
| Net Weight | 1200KG |
| Option parts | vacuum table,servo motor,etc. |
| Machine warranty | 24 months |
| Tool box | Including |
3.Break point and break bits continue engraving function can
support up to nine points and can engrave at any places as you
like.
4.Compatible with Type3 / artcam /castmate/proe/coreldraw/wentai
and other CAD/CAM software,which can produce exquisite relief,video
sculpture,three-dimensional art works.
5.Applicable industry:wood boat/aviation/plane mold, wood casting mold, wood pattern, and
other wood mold.
Foam industry: can carve and cut on any kind of foam with 2D and 3D
dimension processing.
Applicable materials: Polystyrene foam (EPS), Styrofoam, epoxy,
resin, wood, timber, HDF, MDF, plastic and other materials.
6 . Machine pack all wood box , so that during shipping by sea ,
will not have damage .

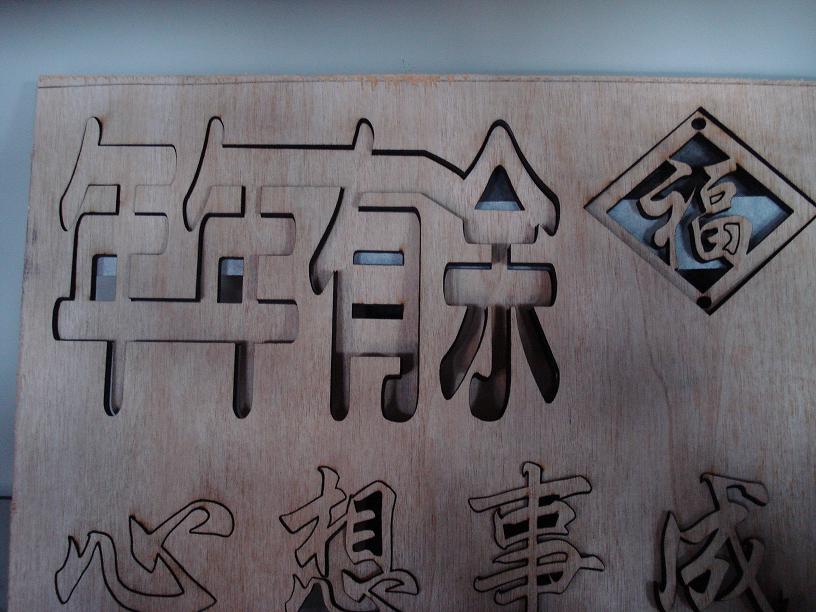

Samples
