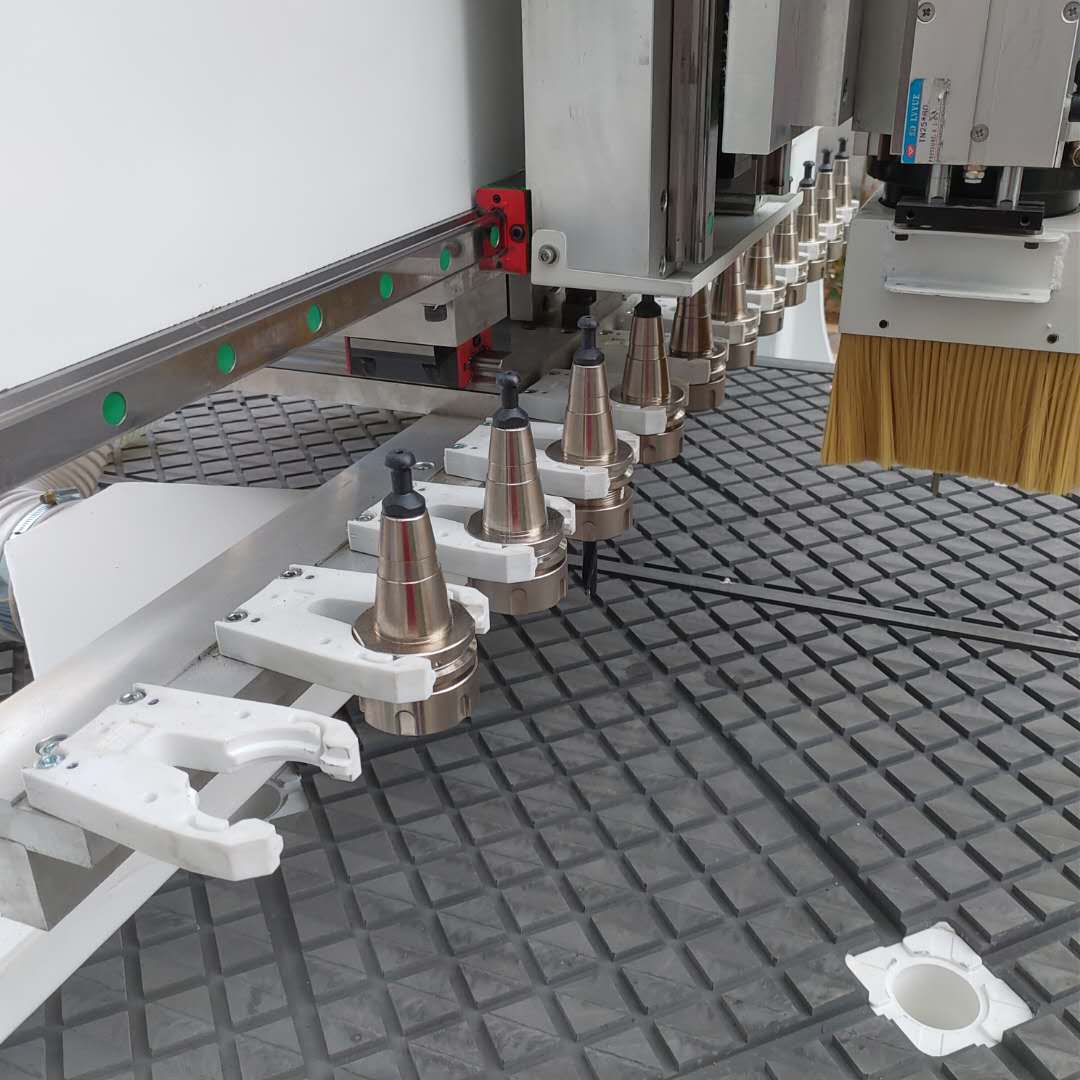

atc cnc router 3 axis 4*8ft 1300*2500mm 3d cnc wood carving machine
woodworking mdf
1. Atc Cnc Machine Heavy-duty body welded by high-strength thick-walled steel pipes,
annealing aging and sandblasting treatment, stable structure and
guaranteed accuracy.
2.cnc router machine excellent accessories and sophisticated detection devices enable
the product to obtain perfect positioning and running accuracy.
3.control system is simple, convenient and easy to learn, users can
quickly get the fleciblity to master the use of equipment, strong
independenc.
4.Compatible with Type3 / artcam /castmate/proe/coreldraw/wentai
and other CAD/CAM software,which can produce exquisite relief,video
sculpture,three-dimensional art works.
5.Applicable industry:wood boat/aviation/plane mold, wood casting mold, wood pattern, and
other wood mold.
Foam industry: can carve and cut on any kind of foam with 2D and 3D
dimension processing.
Applicable materials: Polystyrene foam (EPS), Styrofoam, epoxy,
resin, wood, timber, HDF, MDF, plastic and other materials.
6 . Machine pack all wood box , so that during shipping by sea ,
will not have damage .
Technical parameter:
| Model | DW1325 |
| Working area | 1300x2500mm |
| Machine color | As customer request |
| Spindle power | 2.2kw-9kw can option |
| Cooling mode | Water cooling or air cooling |
| control system | NC-studio/DSP/MACH3 option |
| spindle rptating speed | 0-24000rpm/min |
| Max travel speed | 8000mm/min |
| Power supply | 220V / 380V, Signal /three phase |
| Graphic format supported | BMP, PLT, DST, DXF, AI,CDR,GIF,DWG |
| Software supported | CorelDraw, Photo Shop, AutoCAD |
| command | G code*.u00*.mmg*.plt |
| Resolution ratio | <0.01mm |
| Location precision | <0.01mm |
| Working temperature/ Operating humidity | 5°C-40°C/ 5%-95%(without condensed water) |
| Net Weight | 1200KG |
| Option parts | vacuum table,servo motor,etc. |
| Machine warranty | 24 months |
| Tool box | Including |
Samples
1.Does your company provide teaching and training?
One user muanul and 100mins operation videos , 24th online training
free
2.After receiving the machine, I don't know how to use it or
encounter problems during use, what should I do?
Two languge user manul and 100mins operate videos ,100% operate
problems can be sovled online ,onsite support is avilable .
3.What software do you commonly use? Or adapt to my software (main
CAD or CAM software commonly used abroad)?
99% cam software supported . 100% g code is no problem
